Select View: Details Pictures

BRX1-0005BRX1-0005
Holder

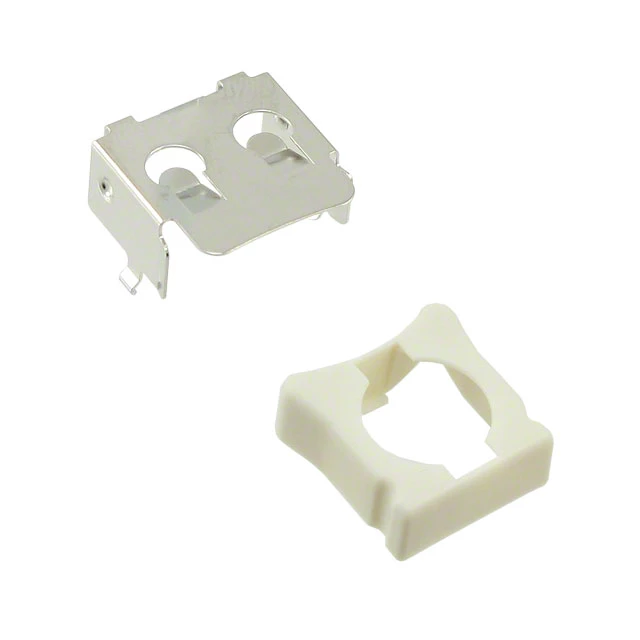

BHX1-LR44-PCBHX1-LR44-PC
A76 Holder with PC pins
Also Accepts: LR44
Height above PCB: 6.30 mm
Lead-free Solder Process Compatible

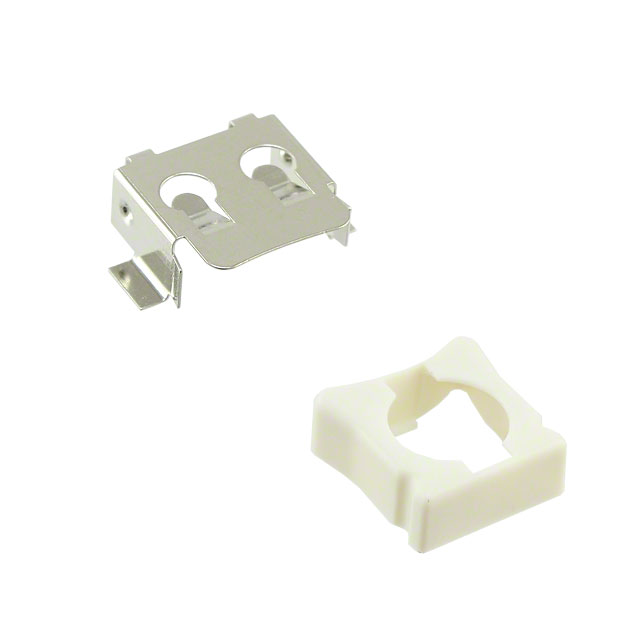

BHX1-LR44-SMBHX1-LR44-SM
A76 Holder with Surface Mount leads
Also Accepts: LR44
Height above PCB: 6.32 mm
Lead-free Solder Process Compatible

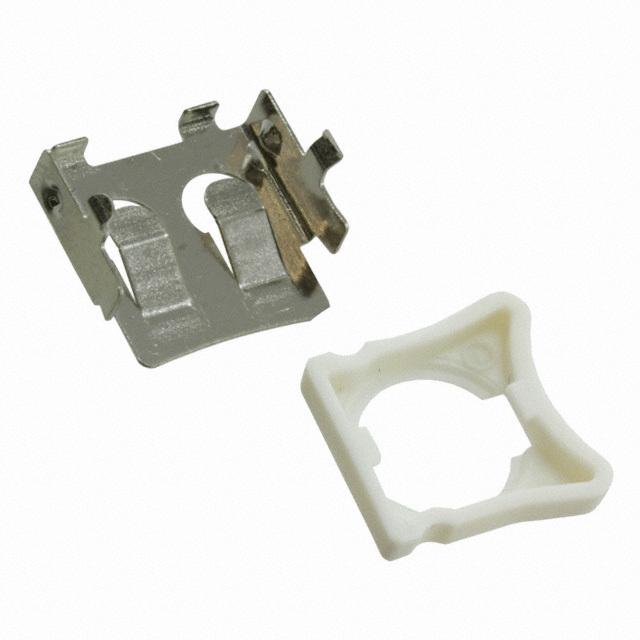

BHX1-1025-PCBHX1-1025-PC
CR1025 Holder with PC pins
Also Accepts: BR1025
Height above PCB: 3.60 mm
Lead-free Solder Process Compatible

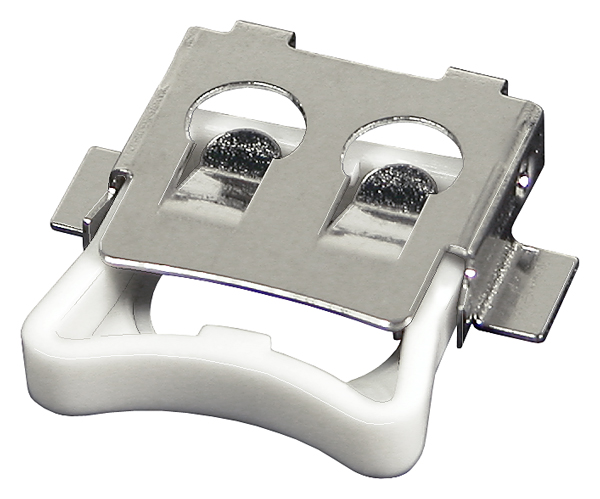

BHX1-1025-SMBHX1-1025-SM
CR1025 Holder with Surface Mount leads
Also Accepts: BR1025
Height above PCB: 3.63 mm
Lead-free Solder Process Compatible

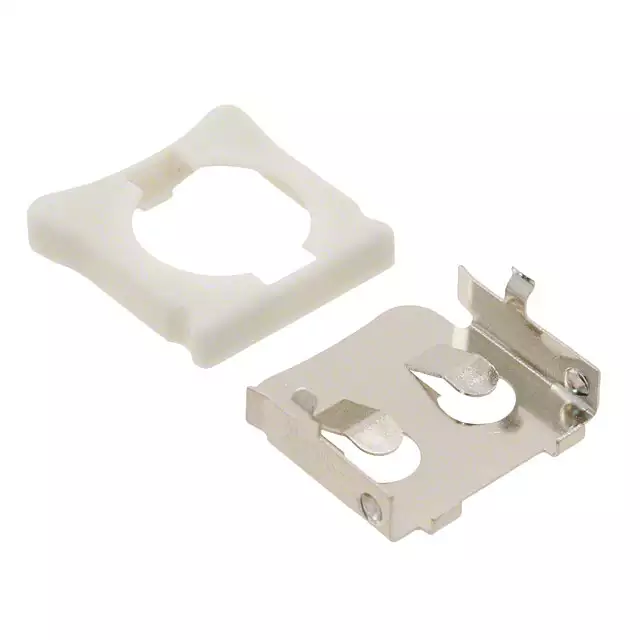

BHX1-1225-PCBHX1-1225-PC
CR1225 Holder with PC pins
Also Accepts: BR1225
Can also fit other smaller cells
Height above PCB: 3.55 mm
Lead-free Solder Process Compatible

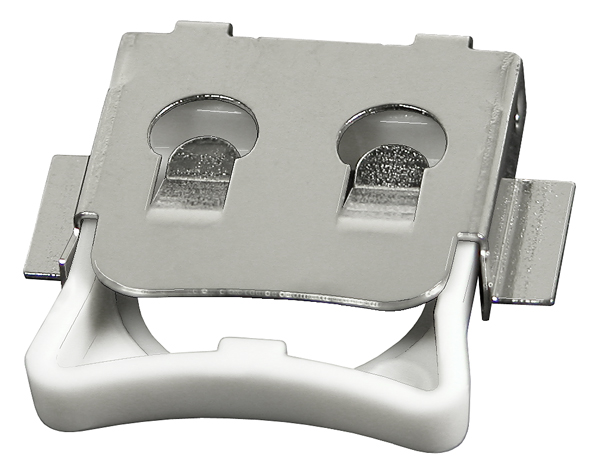

BHX1-1225-SMBHX1-1225-SM
CR1225 Holder with Surface Mount leads
Also Accepts: BR1225
Height above PCB: 3.55 mm
Lead-free Solder Process Compatible

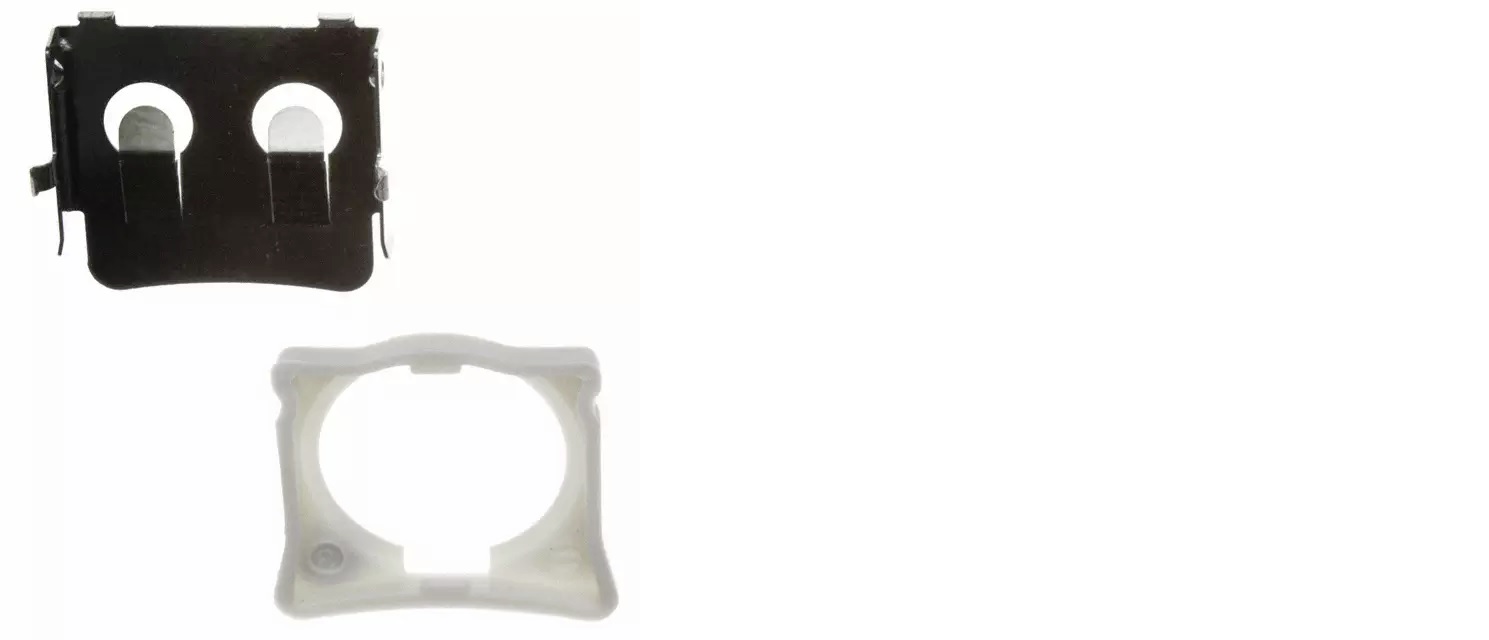

BHX1-1620-PCBHX1-1620-PC
CR1620 Holder with PC pins
Also Accepts: BR1620
Height above PCB: 3.43 mm
Lead-free Solder Process Compatible

BHX1-1620-SMBHX1-1620-SM
CR1620 Holder with Surface Mount leads
Also Accepts: BR1620
Height above PCB: 3.51 mm
Lead-free Solder Process Compatible

BHX1-1632-PCBHX1-1632-PC
CR1632 Holder with PC pins
Also Accepts: BR1632
Height above PCB: 4.19 mm
Lead-free Solder Process Compatible

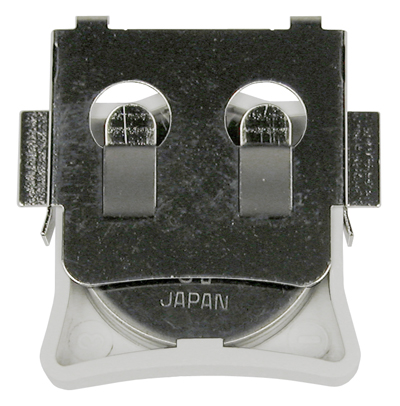

BHX1-1632-SMBHX1-1632-SM
CR1632 Holder with Surface Mount leads
Also Accepts: 2 CR1616 , 2 CR1616 , BR1632
Height above PCB: 4.32 mm
Lead-free Solder Process Compatible

BRX1-1632-SMBRX1-1632-SM
CR1632 Holder

BHX1-2032-PCBHX1-2032-PC
CR2032 Holder with PC pins
Also Accepts: 2 BR2016, 2 CR2016, BR2032
Height above PCB: 4.16 mm
Lead-free Solder Process Compatible

BHX1-2032-SMBHX1-2032-SM
CR2032 Holder with Surface Mount leads
Also Accepts: 2 BR2016, 2 CR2016, BR2032
Height above PCB: 4.32 mm
Lead-free Solder Process Compatible

BHX2-2032-PCBHX2-2032-PC
2 CR2032 Holder with PC pins
Also Accepts: 4 BR2016, 4 CR2016, 2 BR2032
Height above PCB: 7.4 mm
Lead-free Solder Process Compatible

BHX2-2032-SMBHX2-2032-SM
2 CR2032 Holder with Surface Mount leads
Also Accepts: 4 BR2016, 4 CR2016, 2 BR2032
Height above PCB: 7.5 mm
Lead-free Solder Process Compatible

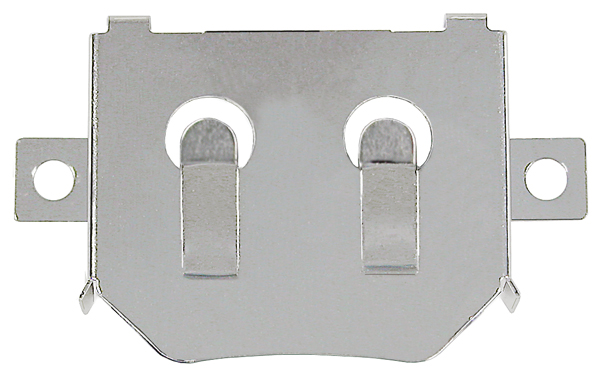

BRX1-2032-SMBRX1-2032-SM
CR2032 Holder
Height above PCB: 4.32 mm
Lead-free Solder Process Compatible

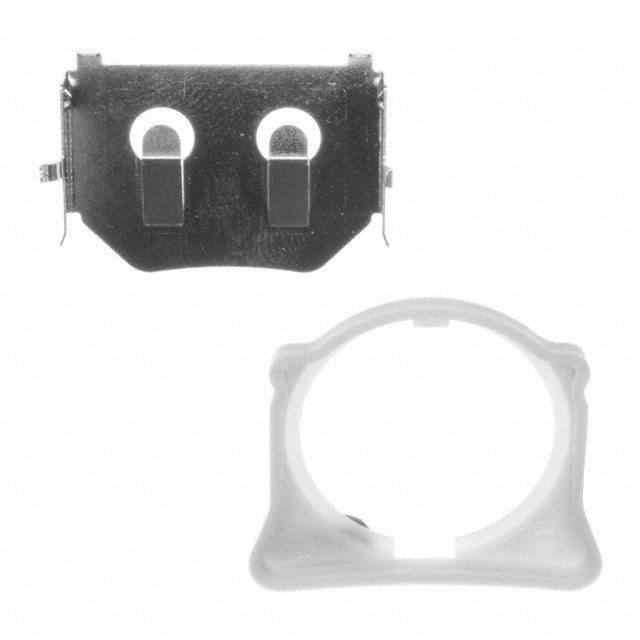

BHX1-2325-PCBHX1-2325-PC
CR2325 Holder with PC pins
Also Accepts: BR2325
Height above PCB: 3.58 mm
Lead-free Solder Process Compatible

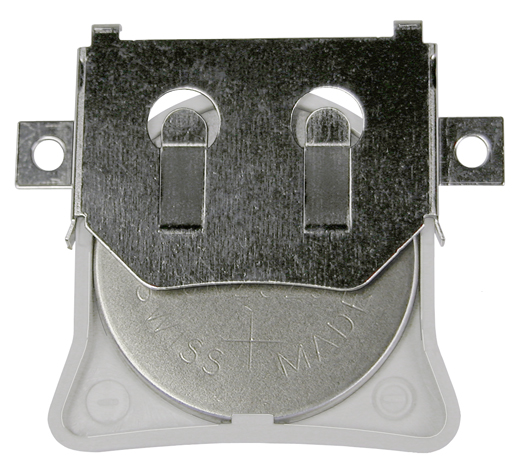

BHX1-2325-SMBHX1-2325-SM
CR2325 Holder with Surface Mount leads
Also Accepts: BR2325
Height above PCB: 3.51 mm
Lead-free Solder Process Compatible

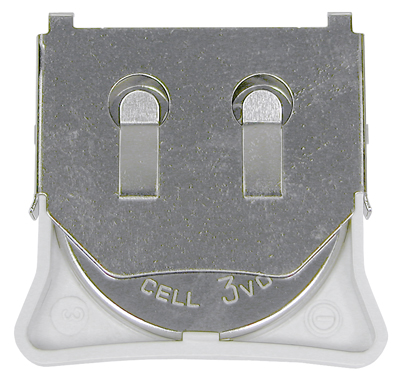

BHX1-2430-PCBHX1-2430-PC
CR2430 Holder with PC pins
Also Accepts: BR2430
Height above PCB: 4.19 mm
Lead-free Solder Process Compatible

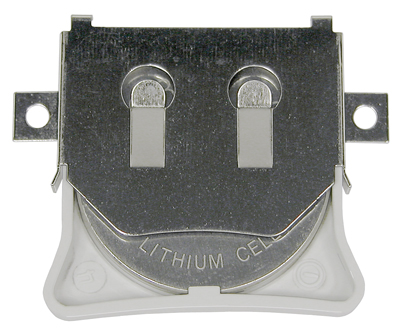

BHX1-2430-SMBHX1-2430-SM
CR2430 Holder with Surface Mount leads
Also Accepts: BR2430
Height above PCB: 4.18 mm
Lead-free Solder Process Compatible

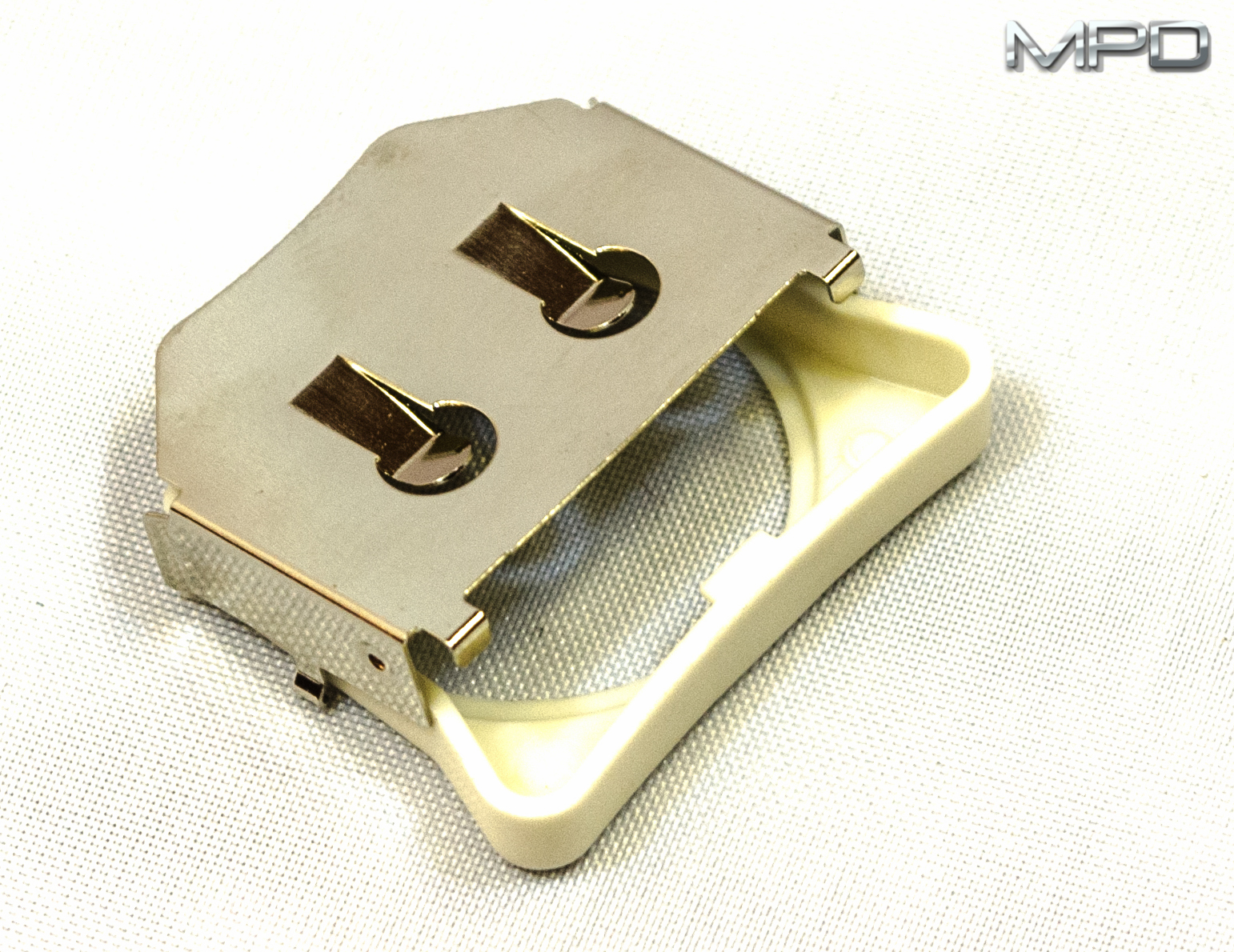

BHX1-2450-PCBHX1-2450-PC
CR2450 Holder with PC pins
Also Accepts: BR2450
Height above PCB: 5.87 mm
Lead-free Solder Process Compatible

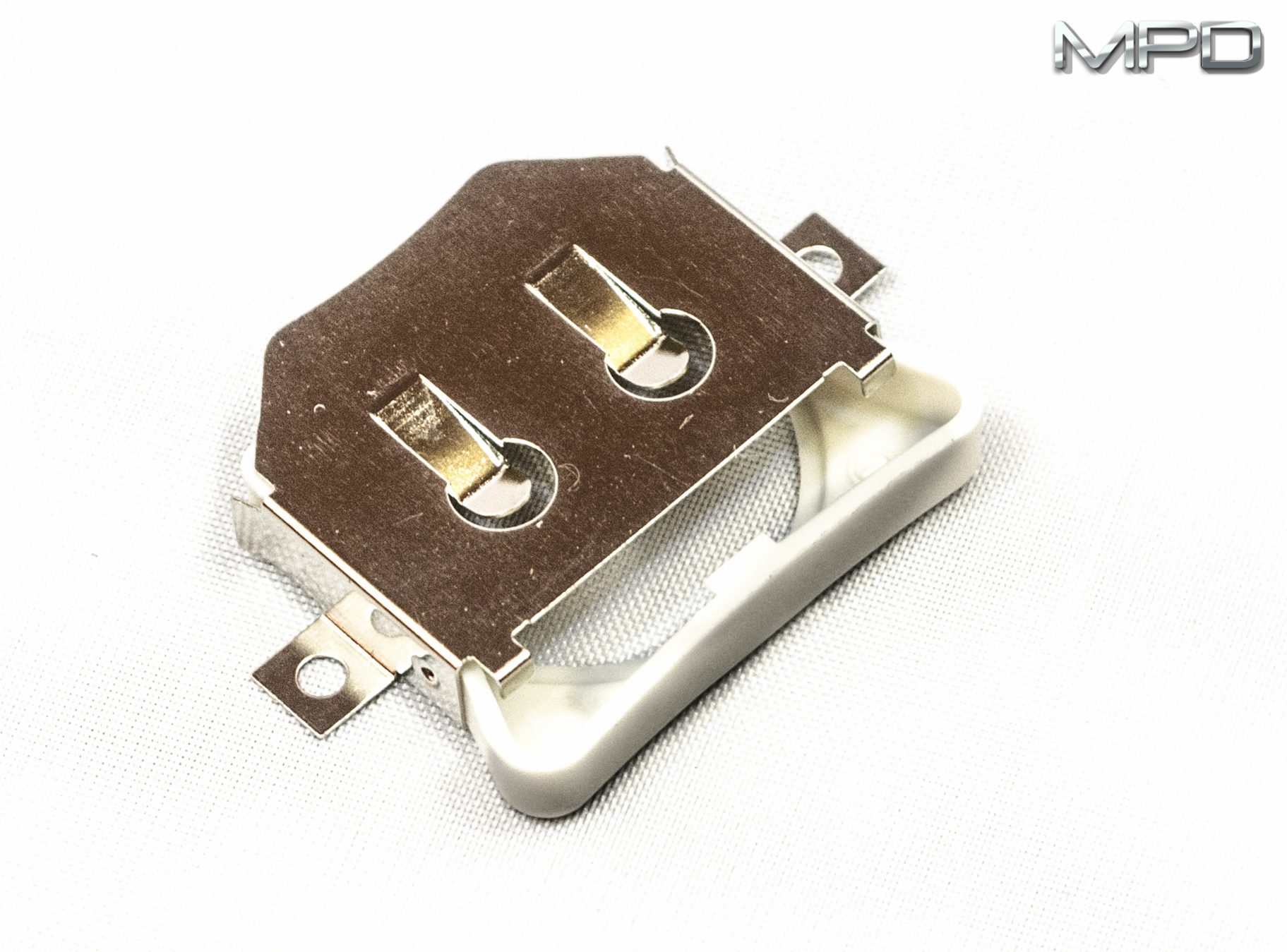

BHX1-2450-SMBHX1-2450-SM
CR2450 Holder with Surface Mount leads
Also Accepts: BR2450
Height above PCB: 5.92 mm
Lead-free Solder Process Compatible

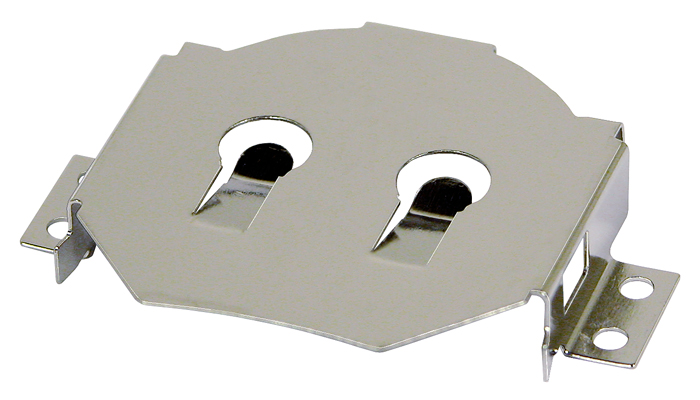

BRX1-2450-SMBRX1-2450-SM
CR2450 Retainer
Also Accepts: BR2450
Height above PCB: 5.90 mm
Lead-free Solder Process Compatible

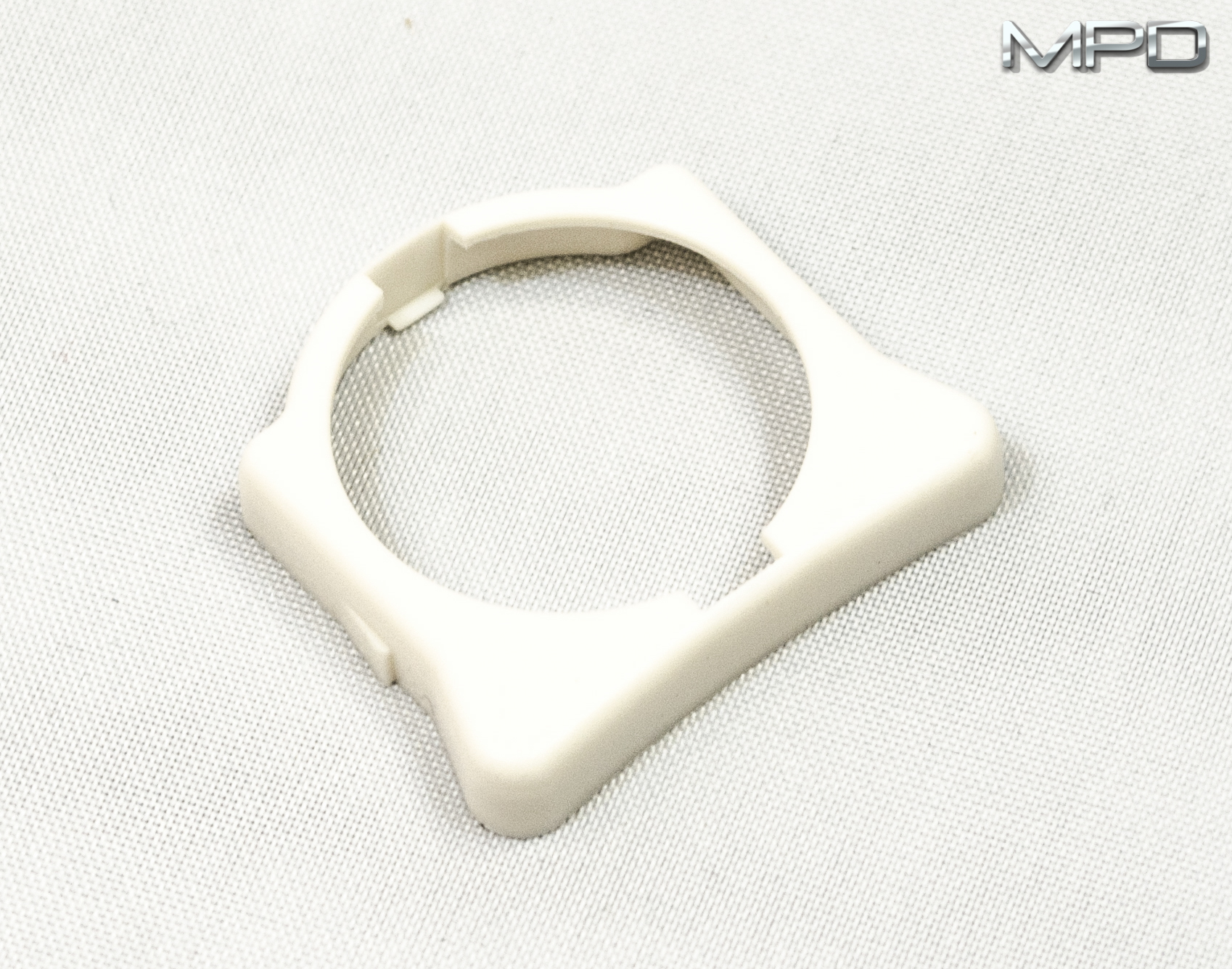

BRX1-0002BRX1-0002
CR2450 Retainer
Also Accepts: BR2450

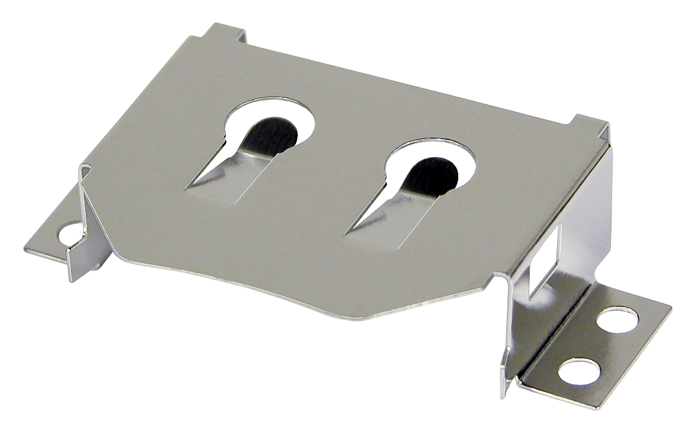

BRX1-2477-SMBRX1-2477-SM
CR2477 Retainer with Surface Mount leads
Also Accepts: BR2477
Height above PCB: 8.70 mm
Lead-free Solder Process Compatible

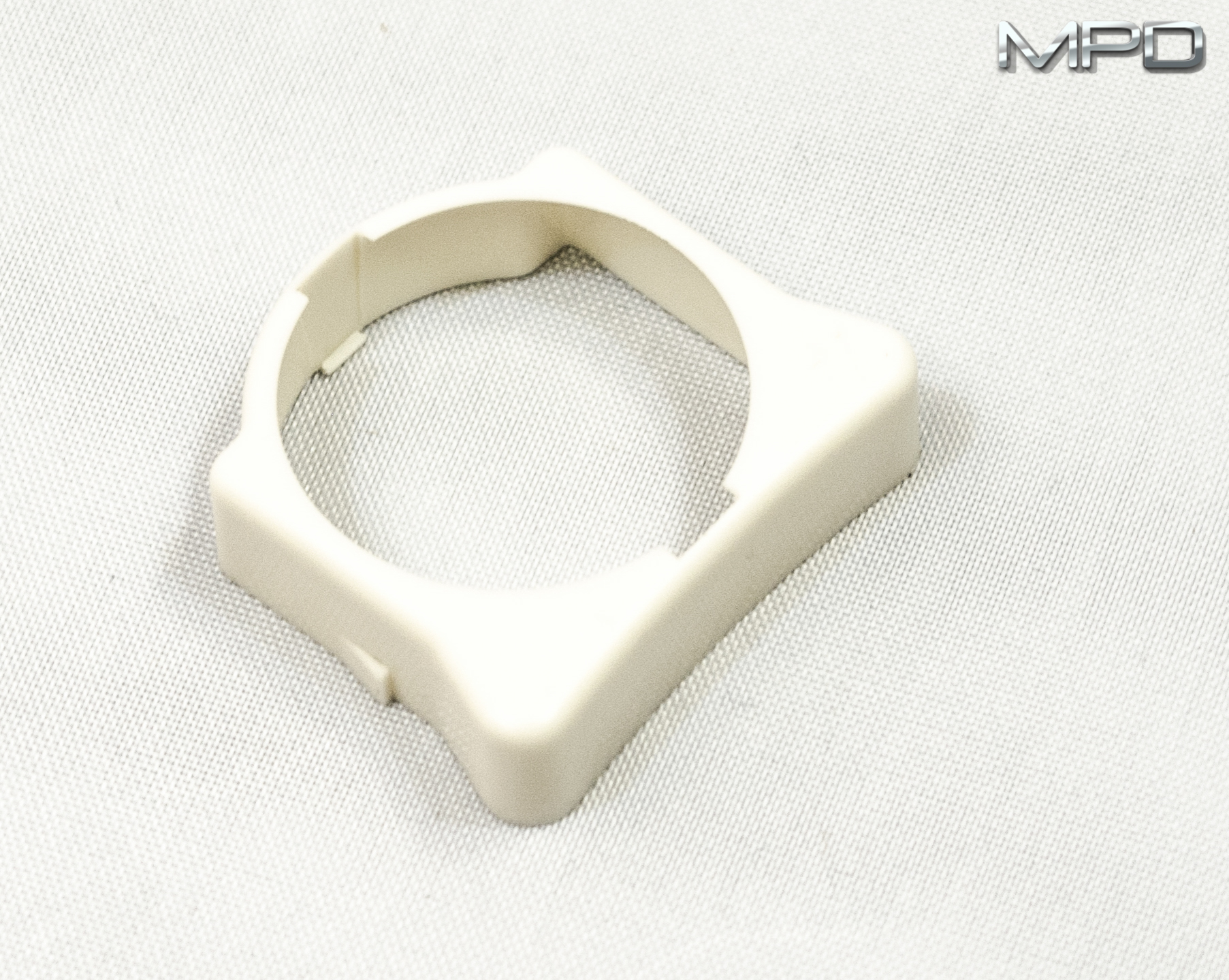

BRX1-0001BRX1-0001
CR2477 Retainer
Also Accepts: BR2477

BHX1-F3-SMBHX1-F3-SM
F3 iButton Holder with Surface Mount leads
Height above PCB: 4.32 mm
Lead-free Solder Process Compatible

BHX1-5.8-PCBHX1-5.8-PC
F5 iButton Holder with PC pins
Also Accepts: V80H or CP1654
Height above PCB: 7.47 mm
Lead-free Solder Process Compatible

BHX1-5.8-SMBHX1-5.8-SM
F5 iButton Holder with Surface Mount leads
Also Accepts: V80H or CP1654
Height above PCB: 7.47 mm
Lead-free Solder Process Compatible
