Coin Cell Holder

Select View: Details Pictures

BHX1-LR44-PC

A76 Holder with PC pins

Also Accepts: LR44

Height above PCB: 6.30 mm

Lead-free Solder Process Compatible

BH401

CR1025 Holder with PC pins

Also Accepts: BR1025

Can also fit other smaller cells

Height above PCB: 6.88 mm

BHX1-1025-PC

CR1025 Holder with PC pins

Also Accepts: BR1025

Height above PCB: 3.60 mm

Lead-free Solder Process Compatible

BK-917

CR1220 Holder with PC pins

Also Accepts: CR1216, BR1216, CR1220, BR1220, CR1225, BR1225

Height above PCB: 3.55 mm

BK-941

CR1220 Retainer with PC pins

Also Accepts: CR1220, BR1220, CR1225, BR1225

Lead-free Solder Process Compatible

BH501

CR1225 Holder with PC pins

Also Accepts: CR1216, BR1216, CR1220, BR1220, BR1225

Can also fit other smaller cells

Height above PCB: 6.93 mm

BHX1-1225-PC

CR1225 Holder with PC pins

Also Accepts: BR1225

Can also fit other smaller cells

Height above PCB: 3.55 mm

Lead-free Solder Process Compatible

BK-890

CR1225 Retainer with PC pins

Also Accepts: CR1220, BR1220, BR1225

Height above PCB: 3.00 mm

Lead-free Solder Process Compatible

BS-1225-PC

CR1225 Holder with PC pins

Also Accepts: BR1225

Height above PCB: 14.0 mm

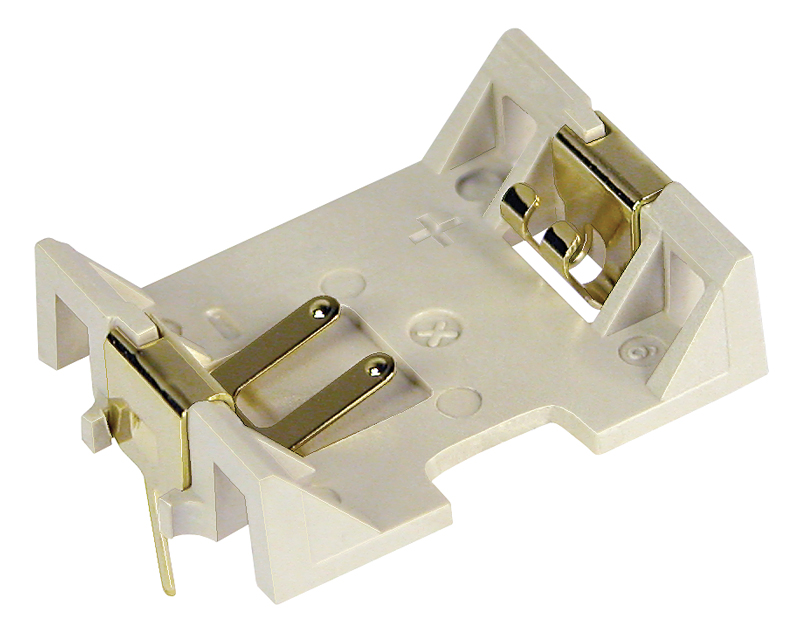

BHSD-1225-PC

CR1225 Holder with PC pins

Also Accepts: BR1225

Height above PCB: 4.83 mm

Lead-free Solder Process Compatible

BC-2011

CR1225 Retainer with PC pins

Also Accepts: CR1220, BR1220, CR1225, BR1225

Can also fit other smaller cells

Height above PCB: 2.67 mm

Lead-free Solder Process Compatible

BHX1-1620-PC

CR1620 Holder with PC pins

Also Accepts: BR1620

Height above PCB: 3.43 mm

Lead-free Solder Process Compatible

BH600

CR1632 Holder with PC pins

Also Accepts: CR1620, BR1620, BR1632, F3 iButton

Can also fit other smaller cells

BH600-G

CR1632 Holder with PC pins

Also Accepts: CR1620, BR1620, BR1632, F3 iButton

Can also fit other smaller cells

Height above PCB: 8.26 mm

BHX1-1632-PC

CR1632 Holder with PC pins

Also Accepts: BR1632

Height above PCB: 4.19 mm

Lead-free Solder Process Compatible

BK-869

CR1632 Retainer with PC pins

Also Accepts: BR1632, F3 iButton

Height above PCB: 4.00 mm

Lead-free Solder Process Compatible

BV-1632-G

CR1632 Holder with PC pins

Also Accepts: BR1632

BU1632-JJ-1-G

CR1632 Holder with PC pins

Also Accepts: DL1632

Height above PCB: 5.2 mm

Lead-free Solder Process Compatible

BA2032

CR2032 Holder with PC pins

Height above PCB: 6.70 mm

BC2032-E2

CR2032 Holder with PC pins

Also Accepts: BR2032

Height above PCB: 5.08 mm

BH32T-C

CR2032 Holder with PC pins

Also Accepts: CR2025, BR2025, BR2032

Can also fit other smaller cells

Height above PCB: 7.18 mm

BH32T-C-G

CR2032 Holder with PC pins

Also Accepts: CR2025, BR2025, BR2032

Can also fit other smaller cells

Height above PCB: 7.18 mm

BH32T-C-HITE

CR2032 Holder with PC pins

Also Accepts: BR2032

Can also fit other smaller cells

Lead-free Solder Process Compatible

BHSD-2032-PC

CR2032 Holder with PC pins

Also Accepts: BR2032

Height above PCB: 4.75 mm

Lead-free Solder Process Compatible

BHX1-2032-PC

CR2032 Holder with PC pins

Also Accepts: 2 BR2016, 2 CR2016, BR2032

Height above PCB: 4.16 mm

Lead-free Solder Process Compatible

BK-5058

CR2032 Holder with PC pins

Also Accepts: BR2032

Can also fit other smaller cells

Height above PCB: 20.45 mm

BK-888

CR2032 Retainer with PC pins

Also Accepts: BR2032

Height above PCB: 3.68 mm

Lead-free Solder Process Compatible

BK-913

CR2032 Retainer with PC pins

Also Accepts: BR2032

Height above PCB: 4.27 mm

Lead-free Solder Process Compatible

BS-3

CR2032 Holder with PC pins

Also Accepts: CR2025, BR2025, BR2032

Can also fit other smaller cells

Height above PCB: 8.95 mm

BS-5

CR2032 Holder with PC pins

Also Accepts: BR2032

Can also fit other smaller cells

Height above PCB: 17.8 mm

BS-7

CR2032 Holder with PC pins

Also Accepts: BR2032

Height above PCB: 9 mm

BS-7-BLUE

CR2032 Holder with PC pins

Also Accepts: BR2032

Height above PCB: 9 mm

BS-7-RED

CR2032 Holder with PC pins

Also Accepts: BR2032

Height above PCB: 9 mm

BU2032-1

CR2032 Holder with PC pins

Height above PCB: 5.2 mm

Lead-free Solder Process Compatible

BU2032-1-G

CR2032 Holder with PC pins

Height above PCB: 5.2 mm

Lead-free Solder Process Compatible

BU2032-1-HD-G

CR2032 Holder with PC pins

Height above PCB: 5.3 mm

BK-5058-4MM

CR2032 Holder with PC pins

Also Accepts: BR2032

Height above PCB: 20.45 mm

BC-2400

CR2032 Retainer with PC pins

Also Accepts: BR2032

Can also fit other smaller cells

Height above PCB: 3.86 mm

BVSD-2032-PC

CR2032 Holder with PC pins

Also Accepts: BR2032

Height above PCB: 28.19 mm

Lead-free Solder Process Compatible

BK-915

CR2032 Retainer with PC pins

Also Accepts: BR2032

Height above PCB: 3.56 mm

Lead-free Solder Process Compatible

BK-888-G

CR2032 Retainer with PC pins

Also Accepts: CR2016,CR2025,CR2032

BK-913-5-TR

CR2032 Retainer with PC pins

Also Accepts: BR2032

Lead-free Solder Process Compatible

BK-921

CR2032 Retainer with PC pins

Also Accepts: BR2032

Lead-free Solder Process Compatible

BRX1-2032-PC

CR2032 Holder with PC pins

Lead-free Solder Process Compatible

BH908T-C

CR2325 Holder with PC pins

Also Accepts: CR2320, BR2320, BR2325, CR2330, BR2330, CR2335, BR2335

Can also fit other smaller cells

BH908T-C-HITE

CR2325 Holder with PC pins

Also Accepts: CR2320, BR2320, BR2325, CR2330, BR2330, CR2335, BR2335

Can also fit other smaller cells

Lead-free Solder Process Compatible

BHX1-2325-PC

CR2325 Holder with PC pins

Also Accepts: BR2325

Height above PCB: 3.58 mm

Lead-free Solder Process Compatible

BK-889

CR2330 Retainer with PC pins

Also Accepts: CR2320, BR2320, CR2325, BR2325, BR2330

Height above PCB: 3.68 mm

Lead-free Solder Process Compatible

BH906S

CR2354 Holder with PC pins

Also Accepts: 2 CR2320, 2 CR2325

BK-881

CR2354 Retainer with PC pins

Height above PCB: 6.10 mm

Lead-free Solder Process Compatible

BH2430T-C

CR2430 Holder with PC pins

Also Accepts: CR2420, BR2420, BR2430

Can also fit other smaller cells

BH2430T-C-HITE

CR2430 Holder with PC pins

Also Accepts: CR2420, BR2420, BR2430

Can also fit other smaller cells

Lead-free Solder Process Compatible

BHX1-2430-PC

CR2430 Holder with PC pins

Also Accepts: BR2430

Height above PCB: 4.19 mm

Lead-free Solder Process Compatible

BK-887

CR2430 Retainer with PC pins

Height above PCB: 3.68 mm

Lead-free Solder Process Compatible

BH1000S

CR2450 Holder with PC pins

Also Accepts: BR2450

Height above PCB: 10.91 mm

BHX1-2450-PC

CR2450 Holder with PC pins

Also Accepts: BR2450

Height above PCB: 5.87 mm

Lead-free Solder Process Compatible

BK-5033

CR2450 Retainer with PC pins

Height above PCB: 6.60 mm

Lead-free Solder Process Compatible

BK-880

CR2450 Retainer with PC pins

Height above PCB: 5.84 mm

Lead-free Solder Process Compatible

BS-2450

CR2450 Holder with PC pins

Height above PCB: 9.90 mm

BC-2007

CR2450 Retainer with PC pins

Also Accepts: BR2450,CR2450,DL2450,LIR2450

Height above PCB: 5.33 mm

Lead-free Solder Process Compatible

BK-951

CR2450 Retainer with PC pins

Also Accepts: BR2450,CR2450,DL2450,LIR2450

Lead-free Solder Process Compatible

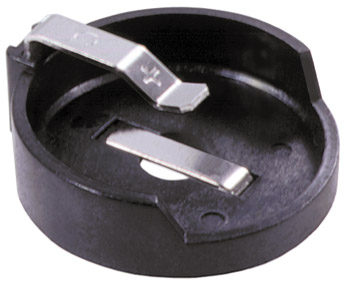

BH1000G

CR2477 Holder with PC pins

Also Accepts: BR2477

Can also fit other smaller cells

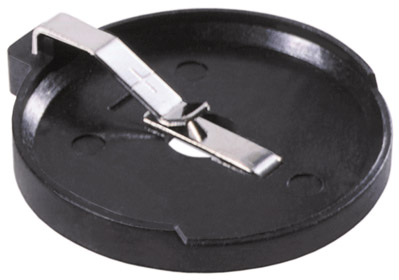

BH3000

CR3032 Holder with PC pins

Also Accepts: BR3032

Can also fit other smaller cells

Height above PCB: 4.32 mm

BH600-5.8

F5 iButton Holder with PC pins

Also Accepts: V80H or CP1654

BH600-5.8-G

F5 iButton Holder with PC pins

Also Accepts: V80H or CP1654

BHX1-5.8-PC

F5 iButton Holder with PC pins

Also Accepts: V80H or CP1654

Height above PCB: 7.47 mm

Lead-free Solder Process Compatible

BK-5010

F5 iButton Retainer with PC pins

Also Accepts: V80H or CP1654

Lead-free Solder Process Compatible

BK-5091

LR44 Retainer with PC pins

Height above PCB: 5.50 mm

Lead-free Solder Process Compatible
